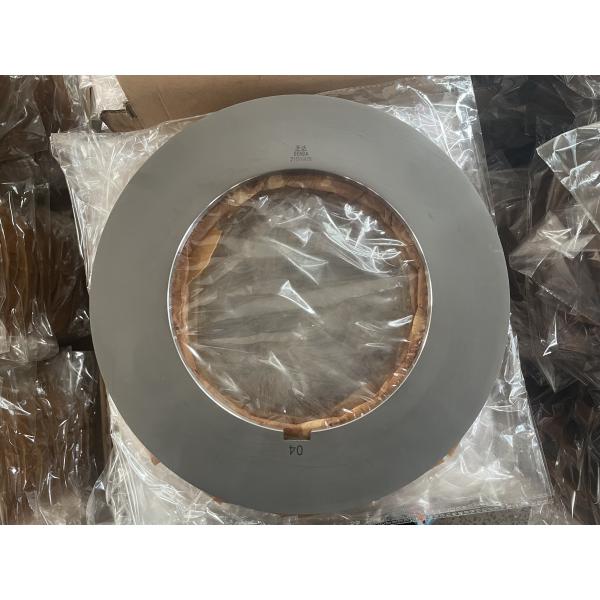

Metal sheet slitter machine rolling shear blades for tinplate coating line
Senda rolling shear blades for tinplate coating line are used with flying shear blade for cutting the hot rolling coils. cold milling coils and sheets etc. with fixing 4pcs of knives which are equipped by 2pcs on each side respectively and they are used for cutting the ends of both: able to cut 0.2~3.2mm sheet for cold rolling mill and cut 1.0~12.7mm sheet for hot rolling mills. Depends on SENDA high quality control. Our productivity can be more than 1,000,000pcs shearing.
Brand: Senda
Country of Origin: China
Material: SKD11,D2, M2, K110, KL-56
Size: Customized
Thickness tolerance: +- 0.001mm
Inner Diameter: + 0.02mm
Flatness: ≤ 0.002mm
Parallelism: ≤ 0.002mm
Concentricity: ≤ 0.02mm
Surface roundness : Ra 0.1um
Hardness: Tool steel: HRC58~~61
Packaging: wooden box with anti-rust film inside
Application: electrolytic tinplate coating line
Application of the Hot rolling shear blades for tinplate coating line:
1. for hot rolling mills: 1~12.7mm carbon steel coils and sheets.
2. for cold rolling mills: 0.02 ~3.2mm carbon steel plates and sheets.
Steel choosing→Blanking →Forging Steel →Rough Processing →Heat treatment →Finishing→Testing
Besides providing the high precision rotary slitting tools, we can provide corresponding services:
1. Design the slitting lines to meet the requirements of slitting system
2. Check and solve questions when happened during working
3. Adjust the gap between the top and bottom knives
4. Regrinding the slitting tools
Senda starting from 1998, focus on the quality of products and provide better service. Now we have over 100 workers, CNC lathes, High precision internal and external circular grinding machines, heat-treatment furnaces grinding machines and inspection machines.
